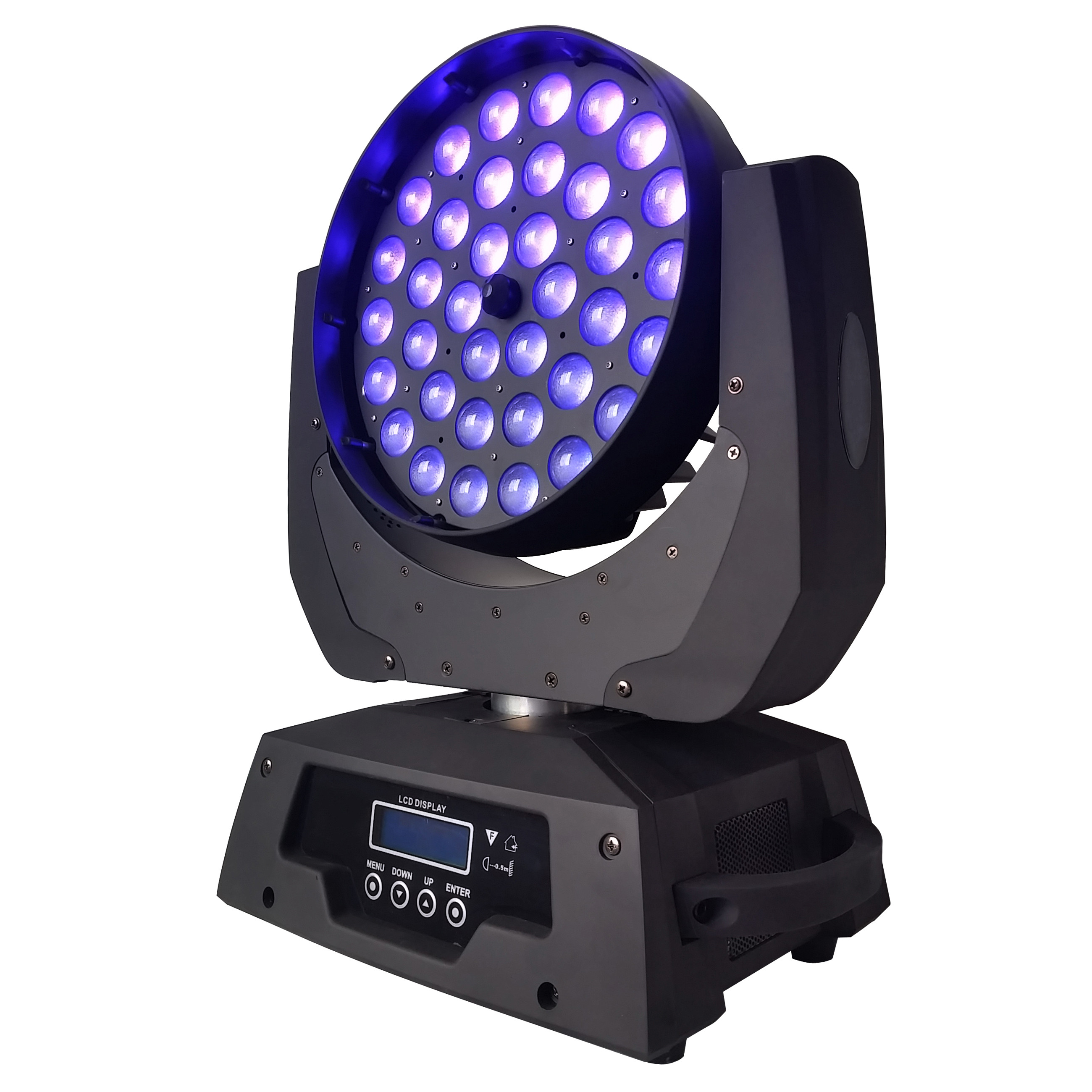

• Optical System

1. Light source: 36*12W 6in1 RGBWA +UV LED
2. 14/17 CH
3. LED lifespan: min. 50,000 - 80,000 hours
4. Zoom: 10° to 60°

• Dynamic Effects

1. LED rainbow effect
2. 0-100% smooth linear dimming system
3. Shutter: 1-18 times/sec high speed strobe, speed adjustable
4. With random strobe and pulse effect

• Control and Program

1. Color touch screen
2. LCD display, brightness and contrast ratio adjustable
3. Protocol: DMX512, master-slave, sound control, auto
4. Built-in 8 pre-programs
5. Marco function

• Movement

1. Pan movement: 630°
2. Tilt movement: 270°
3. Scanning position memory
4. Automatic Pan/Tilt position correction
5. Pan/Tilt resolution: 16 bit smooth scanning

• Electrical Specification and Connections

1. Power supply: electronic auto-ranging
2. Input voltage: AC100-240 V, 50-60 Hz
3. Power connector in/out: IEC standard
4. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
2. Protection grade: IP33

• Approvals

1. CE & ROHS
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 340*230*470mm (13.4*9.1*18.5 inch)
2. Carton: 430*300*390mm (16.9*11.8*15.4 inch)

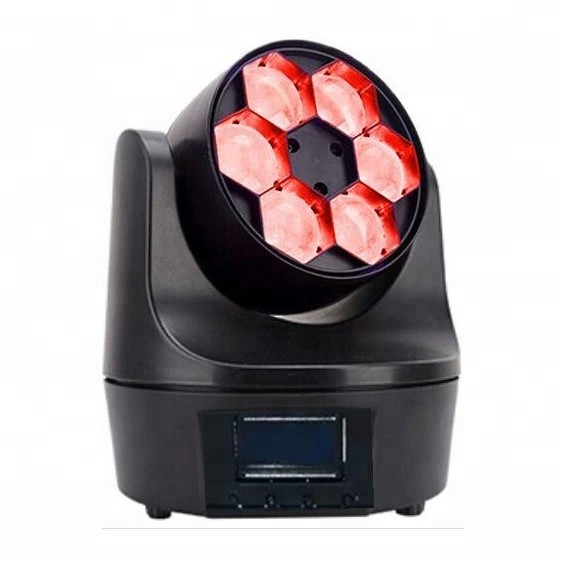

Input Voltage	AC90-240V, 50-60Hz
Power Consumption	135W
LED Quantity	6PCS 15W 4in1 RGBW LED
Lifespan	50,000 hours,  low power consumption
Effect	Petal-like mini beam effects, Pixel patterning macro effects
Pan/Tilt Movement	540°Pan movement,240°Tilt movement
Strobe	1-25 times/sec high speed LED shutter/strobe effect with variable speed; Preset variable/random strobe and dimming pulse effect
Dimmer	0-100% linear LED dimmer
DB Rate	55dB(3”)
Waterproof Rating	IP20
Ambient Temperature	-25℃ ~ 45℃
Net Weight	8 KG
Gross Weight	9 KG
Control Signal	DMX512,Master-slave,Auto,Sound
Control Channel	11/14 international DMX512 channels
Dimensions	220*220*250mm
Packing Size	330(D)*280(W)*260(H)mm

Input Power	AC1100-240V
Frequency	50/60 Hz
Power Consumption	240w
LED	2000w white Leds
Lifespan	80,000 Hours
Color Temperature	7000-8000K
Zoom angle	8-15 degree
Color Wheel	7 colors+white
Static Gobos	8 gobos+white
Rotating Gobos	6 gobos+white
Prisms	3-facet rotation prism
Pan	540 degree (16-bit) electric correction
Tilt	270 degree (16-bit) electric correction
IP Rate	IP33
Dimmer	0-100% Linear Dimmer
Strobe	1-25 t/s
Channel	6/17 dmx channels

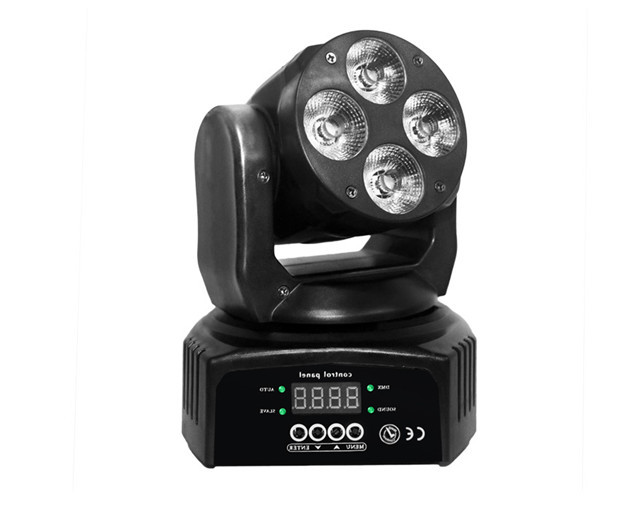

Light source	4x6in1 RGBWA+UV led
Pan	540
Tilt	180
OEM	Accepted
Power consumption	50w
Display	Digital display
DMX channel	11/18 channels
Feature	excellent color mixing, fast rotation , flicker free

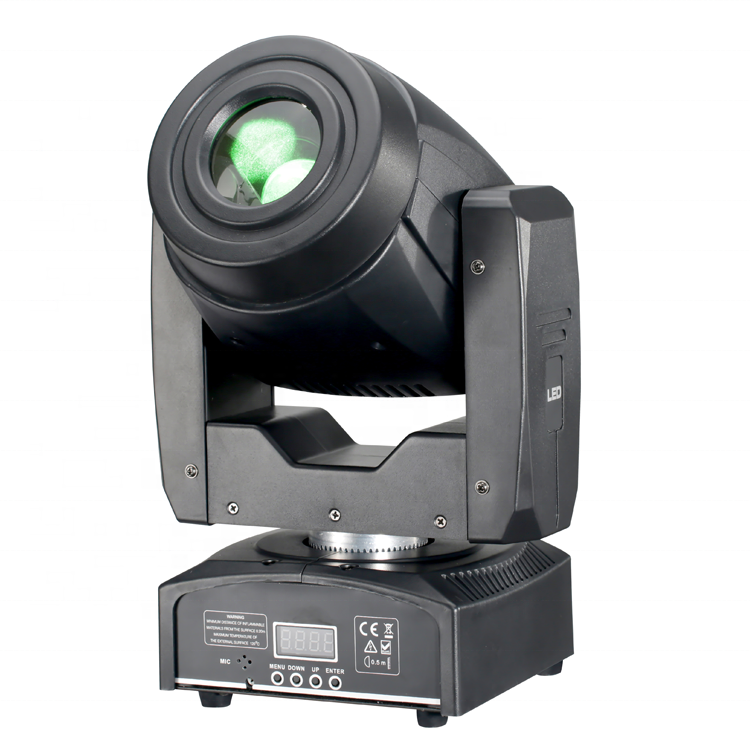

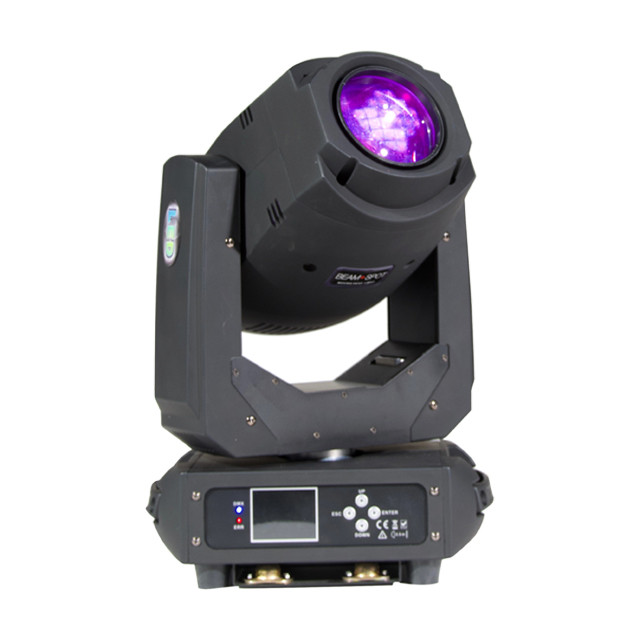

POWER SUPPLIE
Input power:AC100-240V 50/60 Hz
Power consumption :200W
LED Source: 75W white + 9*12W RGBWA+UV 6in1 LEDs
Beam angle: 11°(spot)/25°(Wash)
Lamp life : 5000 hours lamp lifespan and low consumption
16/23 DMX channels
Color wheel: 7 colors+white
Gobo wheel: 7 gobos+open
Prism: 3 face
Focus: Electronic linear focus
Movement :pan 540 degree , tilt 270 degree
Control mode:DMX, Auto, Sound, Master/Slave
Display:LCD display
Dimension: 240*230*405 mm
Weight: 8.5 kg

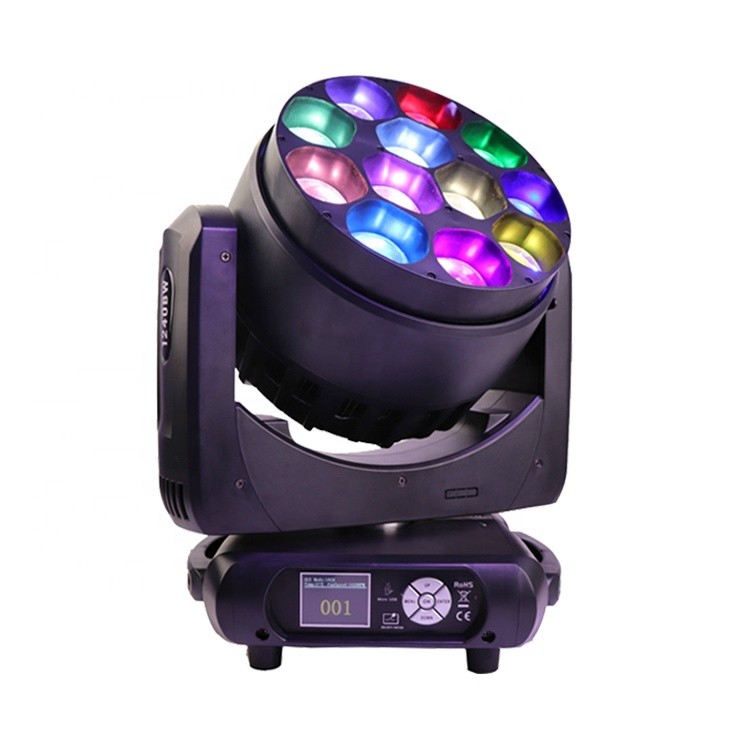

Input power:AC100-240V 50/60 Hz
Power consumption :500 W
LED:12PCS 40W high power RGBW 4 in 1 LED
DMX channel: 11CH ,17CH,18CH,25CH
Movement:Pan/Tilt:X axis540degree, Y axis 190degree
Control mode:DMX512/Master-Slave/Auto run
Strobe macro control availableBeam angle:5-50 degree motorized zoom
Display:LCD display with 5 buttons
RGBW color mixing
Pixel mapping
IP level :IP20
WEIGHT&SIZE
N.W:14KG
G.W:16KG
Packing size: 46*36*49cm

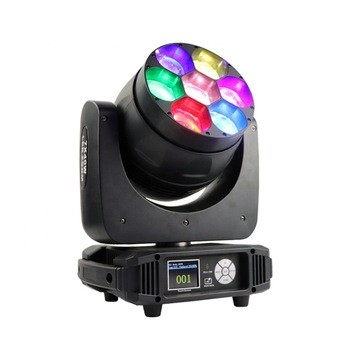

Light Source: 7*40W RGBW 4in1 OSRAM LEDs
Beam Angle: 5°-50°motorized zoom
DMX512, Auto,Master/slave
2 DMX modes: 12/17 CH.
0-100% linear dimmer
1-25 fps strobe
Pan:540°Tilt:190°, 16bit
4-button LCD display
Data in/out:3-pin XLR in out
Power in/out: powerCon in out
Power input: AC 100-240V
Dimension: 301*293*370 mm
N.W.: 9.5 kg
G.W.: 12 kg

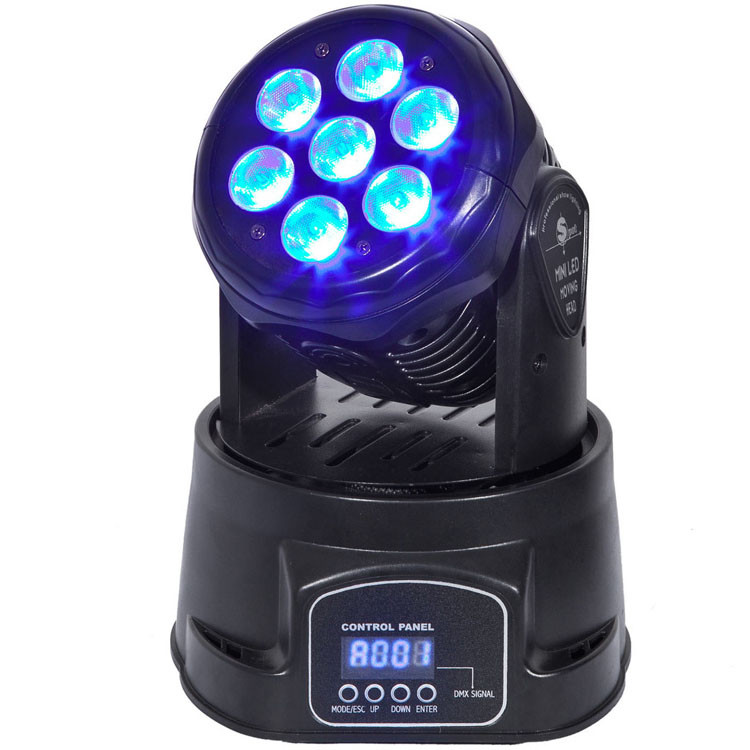

Input power:AC100-240V 50/60 Hz

Power consumption:95 watt(max)

Power connection:IEC-10A

Connection:3pin-XLR male/female

Extremely Long Life:50,000 Hr and low power consumption

LED:7 PCS 12W high power RGBW LED

DMX channel:5/16 channels

Movement:Pan/Tilt:X axis 540°, Y axis 190°

High speed of pan/tilt movement, speed of pan/tilt movement is adjustable

Control mode:DMX512/Master-Slave/Auto run/sound

Display: LED display

8 internal program , sound mode can control by DMX 512

IP-Rating:IP20

N.W:  4.5KG

G.W:  5.75KG

Packing size :

37*30*31cm (1pcs/ctn)

61*39*33cm (2pcs/ctn)

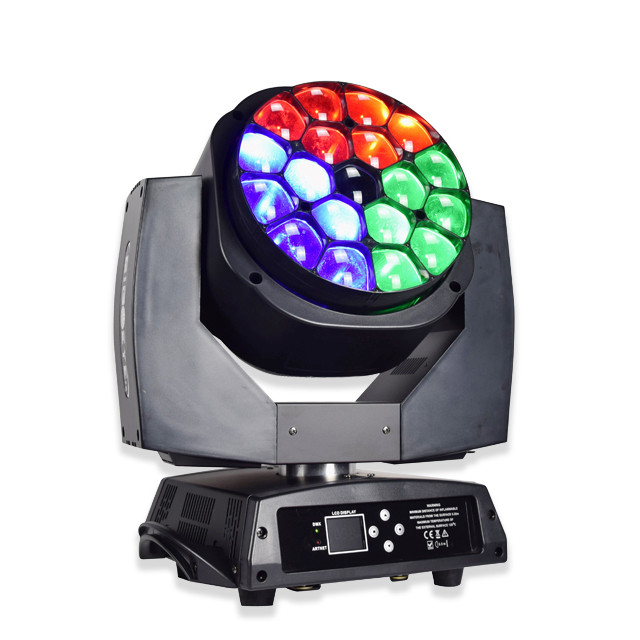

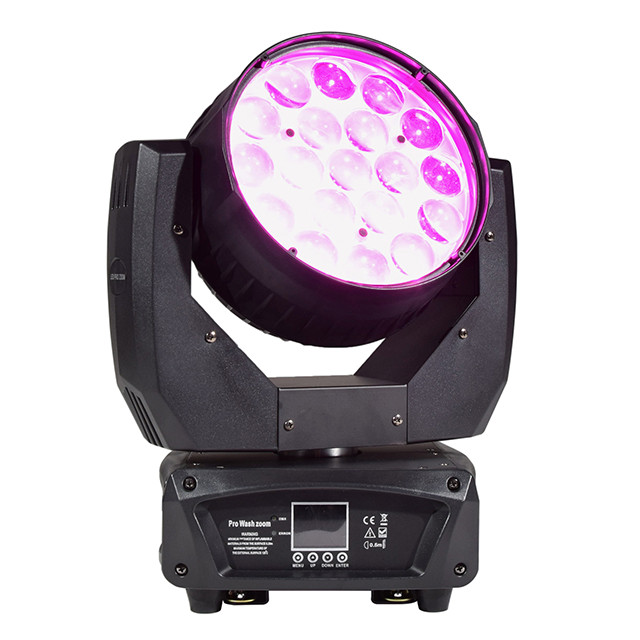

Rated Voltage: AC100V~240V 50-60HZ

Rated Power: 450W
LED Qty: 19x15W high power 4 in 1 LEDs
LED Drive Current: 1000mA
Beam Angle: 4-60°Zoom IP : IP20
DMX Mode: 21CH(Standard)/35CH(Shapes)/78CH(Extend) /97CH(Extend RGBW)
/92CH(Full)
Net weight: 15 Kg Gross weight: 18.2Kg
Product feature
XLR sockets input/output 3Pin
Power input/output
4 kinds of control model: DMX512, Artnet ,Sound active,Master/slave
LCD display screen
Display screen can be turned upside down with 180°to fit the installation in different place
Indoor operation temperature:-20°C~+40°C
5 DMX modes:21/35 /78//97/92CH
dimmer:0-100% linear dimmer
Pan/tilt:
16bit fine pan/tilt control
Smooth and accurate locating
Pan:540°Tilt:210°
Motor rotation in forward and reverse can be setting up
Each LED can be controlled individually,rich colour

The front lens may be infinited rotation in foward and reverse
0-20HZ strobe Zoom anger :4°-60°



Light Source: 19x15W RGBW LED

Zoom Range: 10°~60°

Luminous Flux: 3364lm



Control

DMX Channel: 14/26/30 channels

Control Mode: DMX512

Firmware Upgrade: Update via DMX link



Pan/Tilt

Pan/Tilt: 540°/ 270°

Pan/Tilt Resolution: 16bit



Construction

Display: LCD display

Data In/Out: 3-pin&5-pin XLR

Power In/Out: PowerCon in/out

Protection Rating: IP20



Features

Motorized linear zoom system, zoom range: 10°~60°

Ring control,outstanding color macro effect

0~100% smooth dimming

Various strobe speeds

Fast and mute operating, flicker free



SPEC.

Electrical and Physical

Power Voltage: AC 100~240V, 50/60Hz

Power Consumption: 290W

Dimensions: 310x183x393mm

Weight: 9kg

Power  AC-110-240V,50/60 HZ,
Lamp source  10W*7PCS  LED
Channel  5/12 CH
Zoom  5°-27°
Prism  Triple prism
Scan range  Pan:540°      Tilt:270°
Carton size  30*22*25cm
G.W.   4KG
