Voltage: | AC90-240, 50-60HZ |
Rated power: | 200W |
Lamp quality: | 384x0.5W LEDs |
Color: | White (warm white and pure white optional) |
Color temp: | 3200~6500K |
Lifespan: | 60000-100000 hours |
Beam angle: | 60° |
Dimming: | 0-100% linear dimming |
DMX Channels: | 1CH |
Control mode: | DMX512 |
LCD display: | digital display |
IP: | IP20 |
Weight: | N/G: 9.5KG G/W: 11KG |
Packing Size: | 55x34x12cm |
Accessories: | User Manual 1 pc; safety cord 1 pc; clamp 1 pcs; |
200w White LED Theater Light with Zoom
Technical parameters:
Power Supply: Powercon input/output AC100-240V, 50-60Hz
Data input/output: 3P-XLR input/output, DMX512 Data
Power consumption: 220W
LED: COB LED 200W White (3200K, 6500K optional)
DMX Channel: 3CH
Control: Master/Slave, Auto-run, 4selectable dimming curves
Beam Angle: Zoom 17°-50°
IP: IP20
Housing: aluminium & iron
Operating temperature: -20℃ to 40℃
Measurements: 45x26.5x19.5cm
Weight: 7.5kg
Input Voltage:AC90-240V,50-60Hz
Power Consumption:100W
LED Quantity: 60W
Control Channel: 8/12, 4/8CH
NW: 7.8 KG
GW: 9.5 KG
Packing Size:255(D)*255(W)*365(H)mm
Voltage: | AC90-240, 50-60HZ |
Rated power: | 450W |
Lamp quality: | 832x0.5W LEDs |
Color: | White (warm white and pure white optional) |
Color temp: | 3200~6500K |
Lifespan: | 60000-100000 hours |
Beam angle: | 60° |
Dimming: | 0-100% linear dimming |
DMX Channels: | 1CH |
Control mode: | DMX512 |
LCD display: | digital display |
IP: | IP20 |
Weight: | N/G: 9.5KG G/W: 11KG |
Packing Size: | 55x34x12cm |
Accessories: | User Manual 1 pc; safety cord 1 pc; clamp 1 pcs; |
Input Voltage: AC90-240V, 50/60Hz
Power Consumption: 144W
LED Quantity: 48PCS 3W LEDs(W:24pcs,WW:24pcs)
Control Signal: DMX512, master-slave, sound, auto mode
Control Channel: 6 DMX512 channels
NW: 6.5 KG
GW: 7.8 KG
Product Dimensions: 415*230*125mm
Packing Size: 525(D)*355(W)*165(H)mm

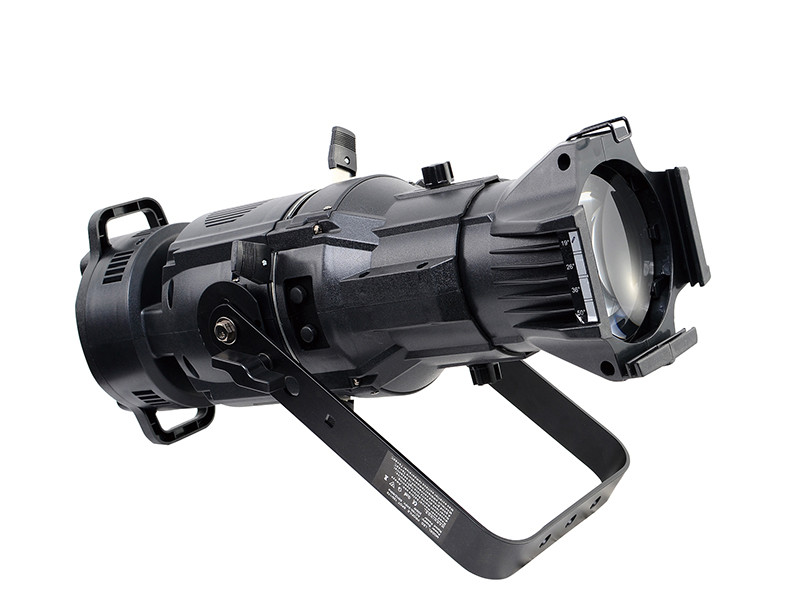

200w White LED Prefocus Profile Light
Technical parameters:
Power Supply:PowerCON Input/Output AC100~240V, 50-60Hz
Data Input/Output: 3P-XLR Input/Output,DMX512 Data
Power Consumption:Max 220W
LEDs:White 200W COB LED(3200K,6500K optional)
DMX channels:3CH
Control:LCD display screen+4 soft keys;4 dimming curves;Master/Slave; Stand alone
Beam Angle:19°(23°, 36°,50° for optional)
IP rate:IP20
Housing:Aluminum&Iron
Operating temperature:-19℃-50℃
Measurements:60*28*22cm
Weight:7.8kg
Input Voltage:AC90-240V,50-60Hz
Power Consumption:100W
LED Quantity: 60W
Control Channel: 8/12, 4/8CH
NW: 7.8 KG
GW: 9.5 KG
Packing Size:255(D)*255(W)*365(H)mm
AC 100-240V 50/60Hz
Power consumption: 420W
20°-70° marvelous smooth zooming with special sliding guiding system;
Equipped with COB LED WHITE 400W, 50,000 hours
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity
5/7 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Hanging brackets included: floor stand with 4 rubber feet
Net weight: 14.10Kgs/Barndoor:1.10kgs
Dimensions: 441*386*464mm(L*W*D)(hanging bracket placed vertically)
DMX FUNCTIONS
5-CHANNEL MODE
Channel 1 – white from darkness to full brightness
Channel 2 –zooming
Channel 3 –dimmer modes selections
Channel 4 – reset
Channel 5 –dimmer durations
7-CHANNEL MODE
Channel 1 – white from darkness to full brightness
Channel 2 –zooming
Channel 3 –strobe
Channel 4 –color fades
Channel 5 –dimmer modes selections
Channel 6 – reset
Channel 7 –dimmer durations
